- DURABLE: The motor kit is made of high quality copper, iron, aluminum, magnets and rubber, strong, stable, rust-proof and wear-resistant to ensure a long service life and a strong load-bearing capacity, with a maximum load capacity of about 330.69-440.92lbs
- COMPLETE KIT: The motor kit includes a full set of accessories needed to convert the scooter, no need to buy separately. The matching kit will provide you with more stable and consistent performance. As a green transportation, the scooter is conducive to environmental protection and in line with the current concept of low-carbon life
- POWERFUL MOTOR: The motor kit adopts a 250W brushed gear motor, which can reach a maximum speed of 6.21mile/h. Compared with brushless gear motors, it features a high starting torque, simple control, and high adaptability. Thumb Throttle with Power Indicator Thumb Grip allows you to easily adjust the motor's power assist with a single press, while also allowing you to easily check the status of use, improving the safety and convenience of maneuvering while riding
- ELECTRICAL ASSISTANCE: The motor kit provides electric assistance to reduce the physical burden on the rider, especially when riding uphill, into a headwind, or over long distances, making it easy and enjoyable for riders of all ages and fitness levels. The 10-inch diameter wheels with non-slip design can easily handle most road conditions
- REVERSE SWITCH: The motor kit solves the problem of traditional scooters that are difficult to reverse in tight spaces or on steep ramps. When you need to back up, the motor kit allows you to maneuver the scooter more safely and easily, increasing the vehicle's agility and utility.F insulated and IP33 rated for safety and reliability, you can rest assured of its reliability
Application
This product is suitable for small go-karts, electric wheelchairs and senior mobility scooters.
Specification
Material: Copper, Iron, Aluminum, Magnetic and Rubber
Color: Black
Assembly Required: Yes
Motor Type: Brush Gear Motor
Rated Voltage: 24V
Output Power: 250W
Unload Current: ≤2.2A
Rated Current: ≤13.4A
Unload Speed: 370rpm
Rated Speed: 330rpm
Rated Torque: 0.8N.m
Efficiency: ≥80%
Gear Ratio: 9:7:1
Insulation Class: F
Protect Grade: IP33
Speed: 10km/6.21mile/h
Wheel Diameter: 25.4cm/10in
Axle Hole Diameter: 12mm/0.47in
Package Size: 48*37*30cm/18.9*14.57*11.81in
Load Capacity: About 150-200kg/330.69-440.92lbs
Gross Weight: 16kg/35.27lbs

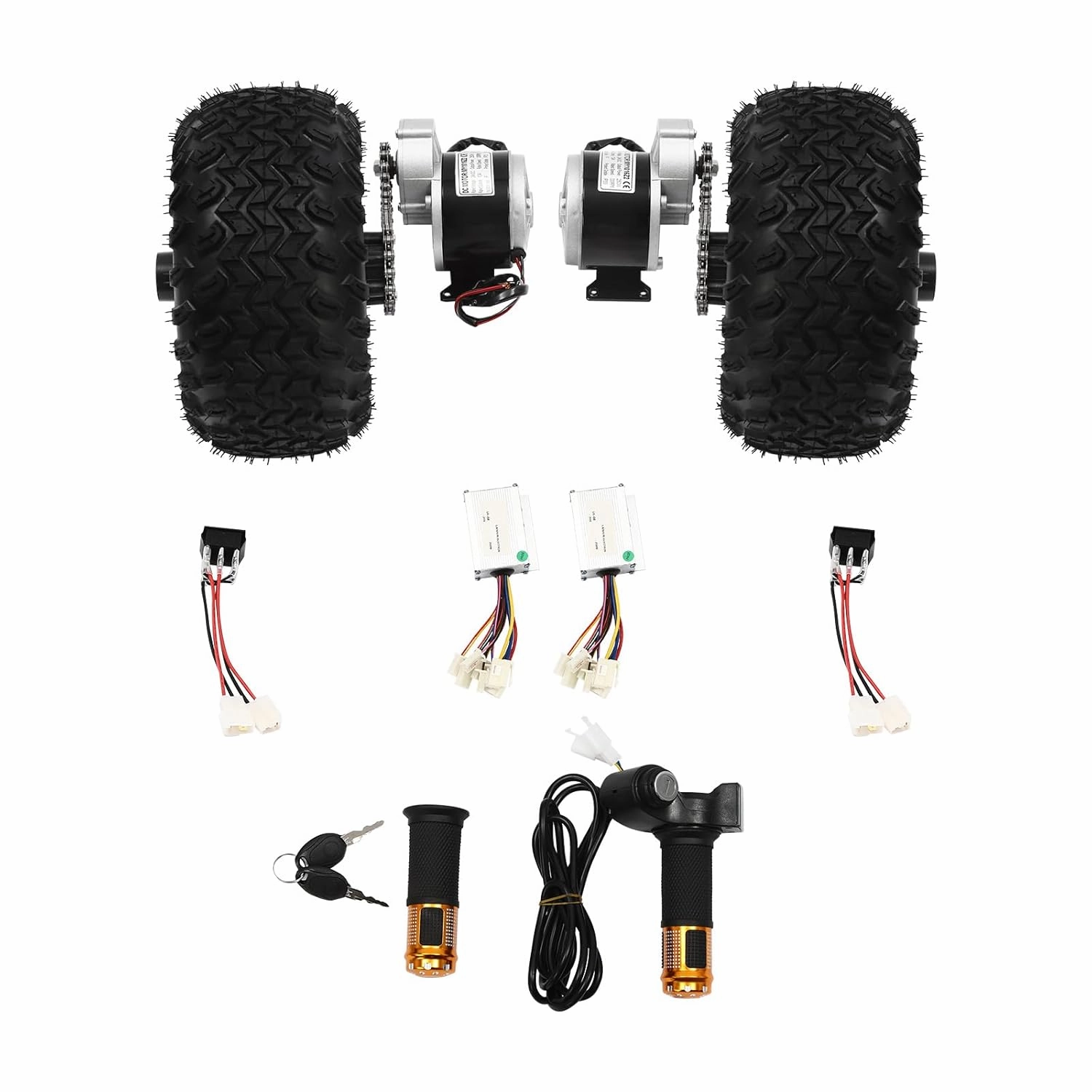

Package Included
2* Wheels
2* Motors
1* Digital Display Throttle
Other Accessories for Assembly
Notes
1. Please note that this product cannot change gears, you can adjust the speed by throttle.
2. Please note that this kit does not include batteries, you need to buy batteries separately, lead-acid batteries and lithium batteries are available, recommended battery capacity is 24V 15Ah.
3. Please note that the wheels are vacuum tires without tubes.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
- Date First Available : November 13, 2024
- Manufacturer : YWXFSS
- Country of Origin : China
