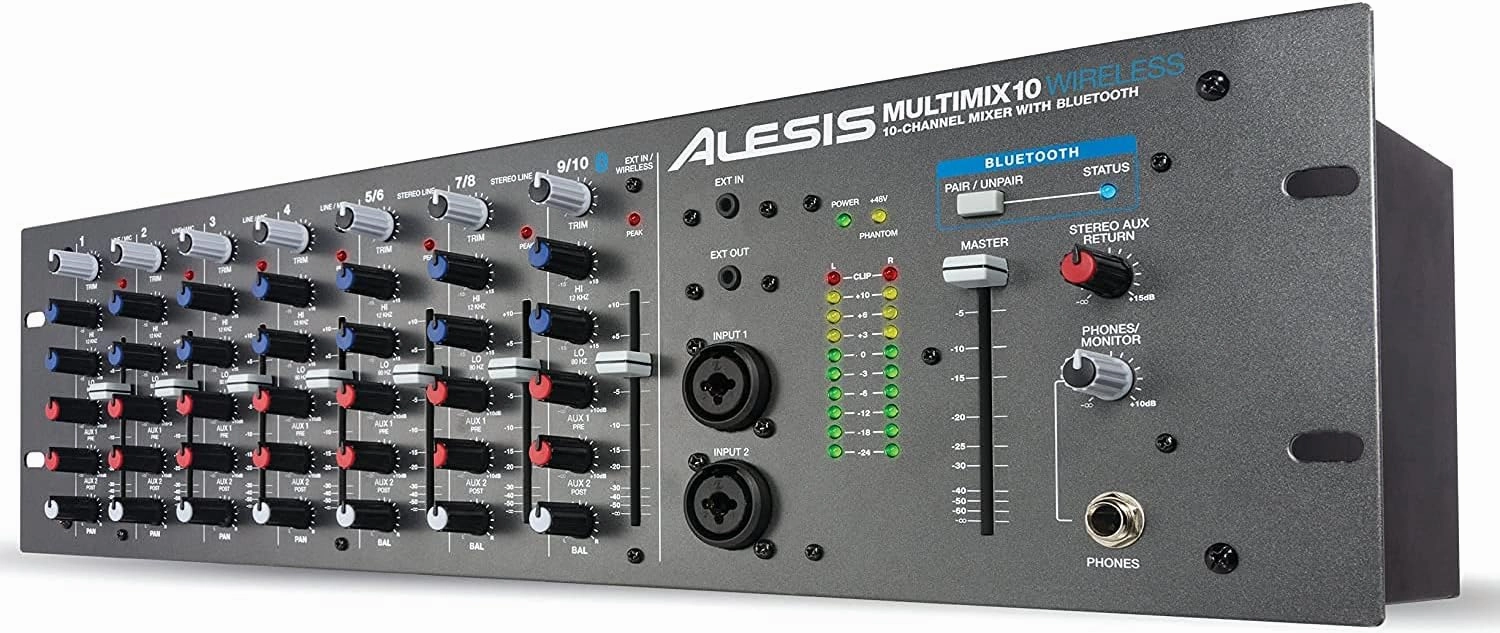

The Alesis MultiMix 10 Wireless is redefining the rackmount mixer category.

Compact and complete, the MultiMix 10 Wireless delivers ten-channel mixing in a neat 3U package that is perfect for smaller clubs and venues, houses of worship, as well as mobile/traveling systems.

The MultiMix 10 Wireless benefits from an array of easily accessible front panel jacks that enhance the versatility and usefulness of this generously equipped mixer. Topping off the feature list is a channel dedicated to receiving the stereo playback from any Bluetooth device. The MultiMix 10 Wireless is a new breed of rackmount mixer.

The MultiMix 10 Wireless provides a wealth of inputs to accommodate nearly any audio input. Channels 1-4 are ideal for vocals or acoustically mic’d instruments, direct boxes, and more. Each provides an XLR mic input with available phantom power; a balanced 1/4” TRS line input, plus a TRS 1/4” insert jack for incorporating additional effects or working with a second mixer. Channels 5-8 have been set as stereo pairs, offering 1/4” left and right inputs. These channels are ideal for stereo sources such as a keyboard, electronic drum set, drum machine, external mixer, etc.. Channels 7-8 also provide left and right RCA inputs.

You can also stream a stereo audio signal from any Bluetooth device to Channels 9-10 of the MultiMix 10 Wireless. Single-button pairing keeps it simple. Now you can easily play music between sets, stream audio from a computer during a multimedia presentation, or even play a track from a patron’s smartphone for satisfying that “special request.” The articulating Bluetooth antenna delivers optimal reception.

Using the MultiMix 10 Wireless is easy and intuitive. Each single and stereo-paired channel offers a trim knob, peak LED, and a smooth-travelling 60mm fader for attaining the best signal level. In addition, there is a two-band EQ and pan for shaping the sound and creating a great mix. There are two aux send knobs per channel for creating a separate monitor mix, using an external global effect, etc. Aux 1 is set to pre-fader and Aux 2 is post-fader for maximum versatility.

Dual multi-segment LED meters and a Master output fader allow you to easily monitor and control your levels. Left and right main outputs are equipped with balanced 1/4” TRS jacks—ideal for extended cable runs. The left and right monitor outs provide unbalanced 1/4” jacks. There is a separate headphone output on the front panel, with a dedicated volume control.

Technical Specifications

• Type: Analog
• Channels: 10
• Input Voltage: 115-230V AC, 50-60Hz
• Frequency Response: 20Hz–50kHz, ±0.5dB
• Dynamic Range: 108dB
• Distortion: <0.005% THD N (mic/line to L/R main out)
• Maximum Gain: 70dB (mic in to L/R main out)
• Headroom: 24dB
• Inputs
  • Mic Preamps: (4) XLR
  • Line:
    • (4) 1/4” TRS (channels 1-4)
    • (4) 1/4” TRS (channels 5-8)
    • (2) RCA (Tape)
  • Other
    • (1) 1/8” stereo line level (channels 9-10)
    • (2) XLR 1/4” combo (Front)
• Outputs
  • Main
    • (2) 1/4” TRS (Main)
    • (2) 1/4” TS (Monitor)
    • (1) 1/8” (Front)
  • Other
    • (2) RCA (Tape)
    • (1) 1/4” headphones
• Send/Return I/O: (2) TRS / (2) Stereo
• Phantom Power: 48V via XLR
• EQ Bands: 2-band (CH 1-10)
• Aux Sends:
  • (1) Pre
  • (1) Post
• Faders: (11) 60mm
• Dimensions (height x width x depth): 5.2” x 19.0” x 6.3” Rackmountable 3U
• Weight 8.9 lbs.

Box Contents

• MultiMix 10 Wireless
• Power Cable (standard IEC)
• Quickstart Guide
• Safety Instructions & Warranty Information Booklet
