- DIMENSIONS AND COMPACITY FOR EASY INSTALLATION The APX 690 features a compact 6x9" design that makes it easy to install in a variety of vehicles without the need for extensive modifications. Its coaxial configuration reduces the space required, allowing for quick and easy installation of the speakers. In addition, the reduced mounting depth ensures that they fit a large number of installation spaces available on vehicles.
- EXCEPTIONAL AUDIO PERFORMANCE POWER AND QUALITY With 100W RMS continuous power and 300W peak power, the APX 690 delivers powerful, clear sound. The frequency response of 40 Hz to 23 kHz and the sensitivity of 96 dB/Spl ensure accurate reproduction of the bass and high frequencies, providing an immersive and dynamic sound experience.
- HIGH QUALITY CONSTRUCTION MATERIALS AND DURABILITY The APX 690 is made of high quality materials, such as the water-treated paper cone and the pure copper moving coil. These materials ensure long durability and resistance, even in extreme conditions of humidity and temperature inside the vehicle. The robust construction contributes to maintaining consistent and reliable sound quality over time.
- EASE AND VERSATILITY OF INSTALLATION Thanks to its coaxial design, the APX 690 can be easily installed in a variety of vehicles without the need for significant modifications. Their standard 6x9" size makes them compatible with a wide range of car audio systems, while the included protective grilles ensure a clean and secure installation.
- Audison EXPERIENCE AND REPUTATION IN THE CAR AUDIO Audison is a consolidated brand with more than 40 years of experience in the car audio sector, being recognized for its innovation and the quality of its products. The Prima series, including the APX 690, is a testament to Audison commitment to delivering high performance, easy-to-install products with exceptional reliability. The brand continues to be a global benchmark in the creation of high-end audio solutions.

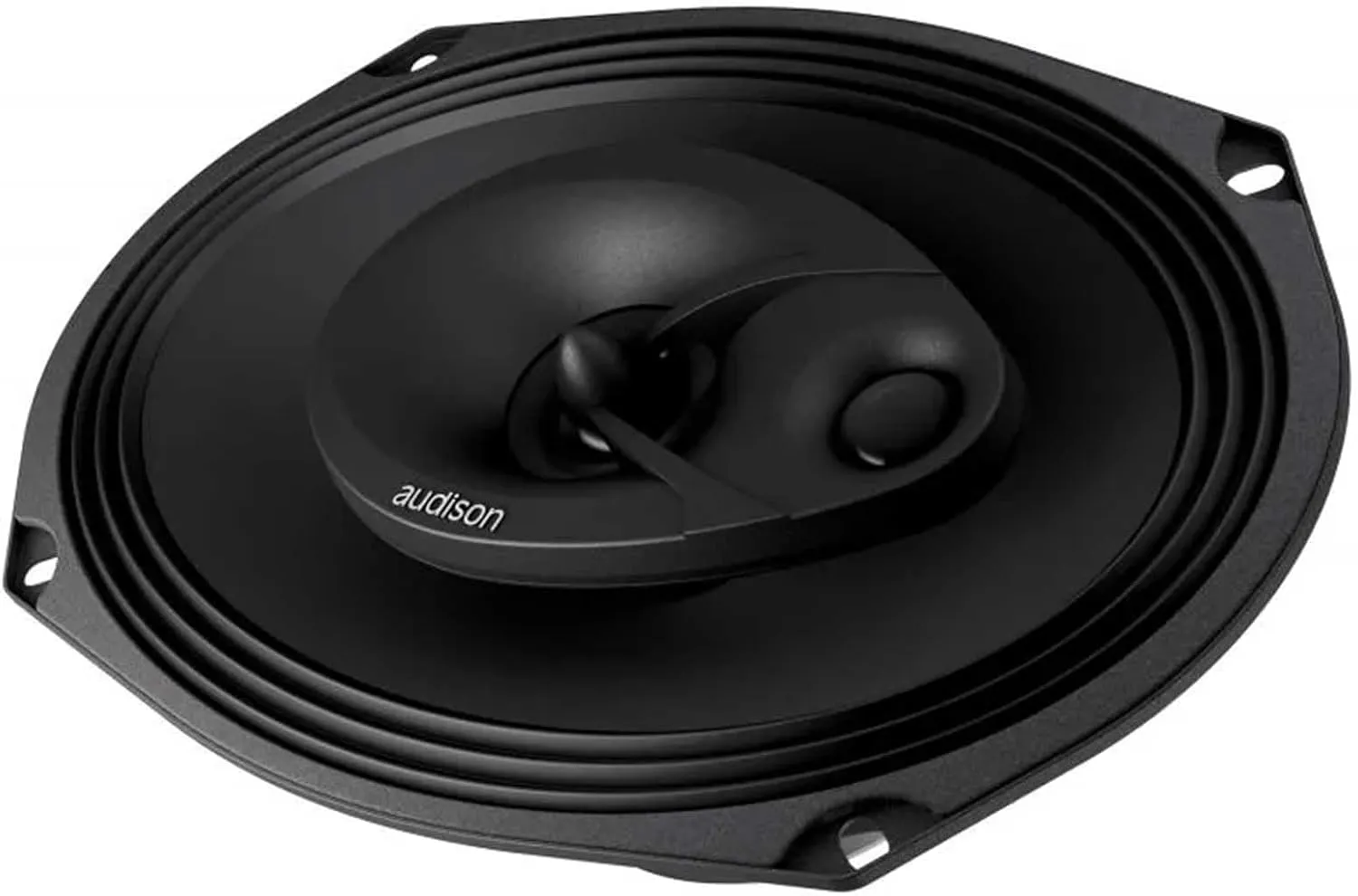

APX 690 - SET COAX 3Way 6"X9" Grilles
The APX 690 features an exclusive 40 mm horn loading dome tweeter that contributes to maximize efficiency up to 96dB SPL and an acoustics lens specifically designed and applied to the tweeter to increase dispersion in the high frequency range. To strengthen the emission of very high frequency ranges otherwise affected by off-axis positioning compared to the listening point, the APX 690 featuring a supertweeter.
Features -
Horn Loaded Tweeter: 40 mm horn loaded dome tweeter contributing to its incredible efficiency of up to 96dB SPL.
Acoustics lens applied to the tweeter, specifically designed to increase dispersion in the high frequency range.
PEI (Polyethylene injected) supertweeter employed to strengthen emission of very high frequency ranges otherwise affected by off-axis positioning common to rear deck installations.
Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
Pure copper mobile voice coil, wound on Kapton former, for better thermal and mechanical capacity.
TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Polycotton spider material ensuring reliable performance and linear response to musical transients.
Large motor assembly, optimised with FEM (Finite Element Method) technology, for stable control and linear excursion.
Low carbon content plates for maximum magnetic permeability and high heat dissipation.
Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
High current fast-on terminal with temperature resistant plastic cover, protecting it against accidental short circuits.
Developed with the KLIPPEL suite.
