Replacements

• When replacing worn out or broken Blum hinges, it is a good idea to replace all the hinges on your door at the same time.
• Prior versions of this hinge were made to open to 120 degrees. The 120-degree hinge can be replaced with this new 110-degree version. It is not advisable to mix 120-degree hinges with the new 110-degree hinge.
• You can use this new model hinge to replace your "old" style Blum Compact 33 hinge. The old style and the new style are functionally the same even though they look like different hinges.
• The only difference is in the old style had its screw holes located closer to the pivot point of the hinge. When replacing the Old Style with the New Style, you will have to re-drill the small wood screw holes. The new screw hole location will not interfere with the old screw hole location.

Specifications:

• 110 degree opening angle
• Two-piece assembly
• Edge or face mount
• 1/2" Cup depth
• /- 9/64" height adjustment
• /- 1/8" side adjustable
• Screw-on installation
• Overlay: ½
• Closing Type: Self-Closing
• Fixing Type: Screw-On
• Boring Pattern: 45mm
• Cup Depth: 13mm
• Cup Diameter: 35mm

Including:

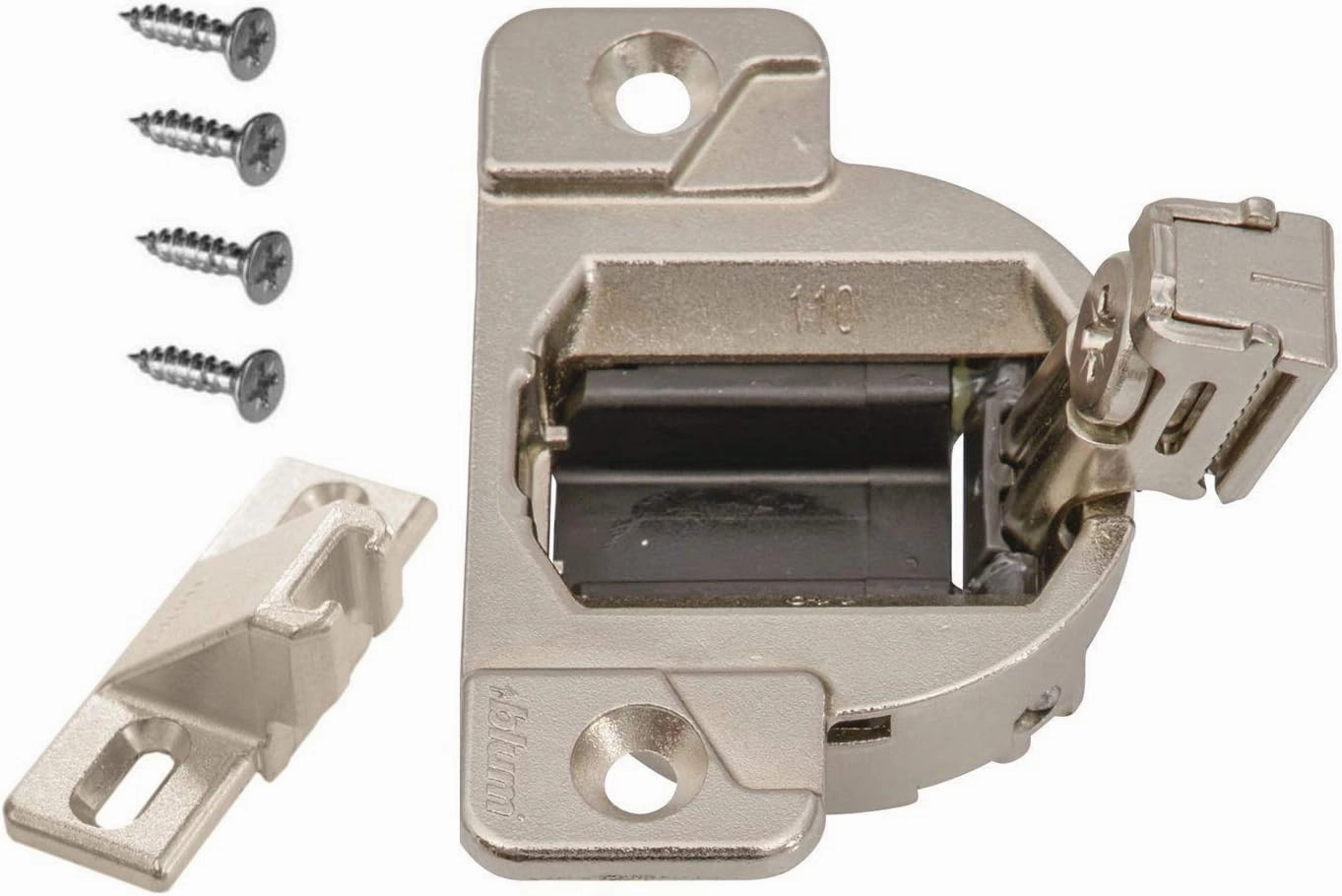

• Blum Hinge(s) 33.3600, Blum Plate(s) with 3/4 overlay 130.1100.22
• Set of Dexter Group screws

Made in:

• Hinge made in: Austria
• Dexter Group screws are made in USA

Blum, Inc. is a #1 leading manufacturer of functional hardware for the kitchen cabinet and commercial casework industries specializing in lift systems, concealed hinges and drawer runner systems.

Trademarks

• Blum and the Blum Logo are trademarks of Blum Inc.
• Dexter Group and the Dexter Group Logo are trademarks of Dexter group corp
