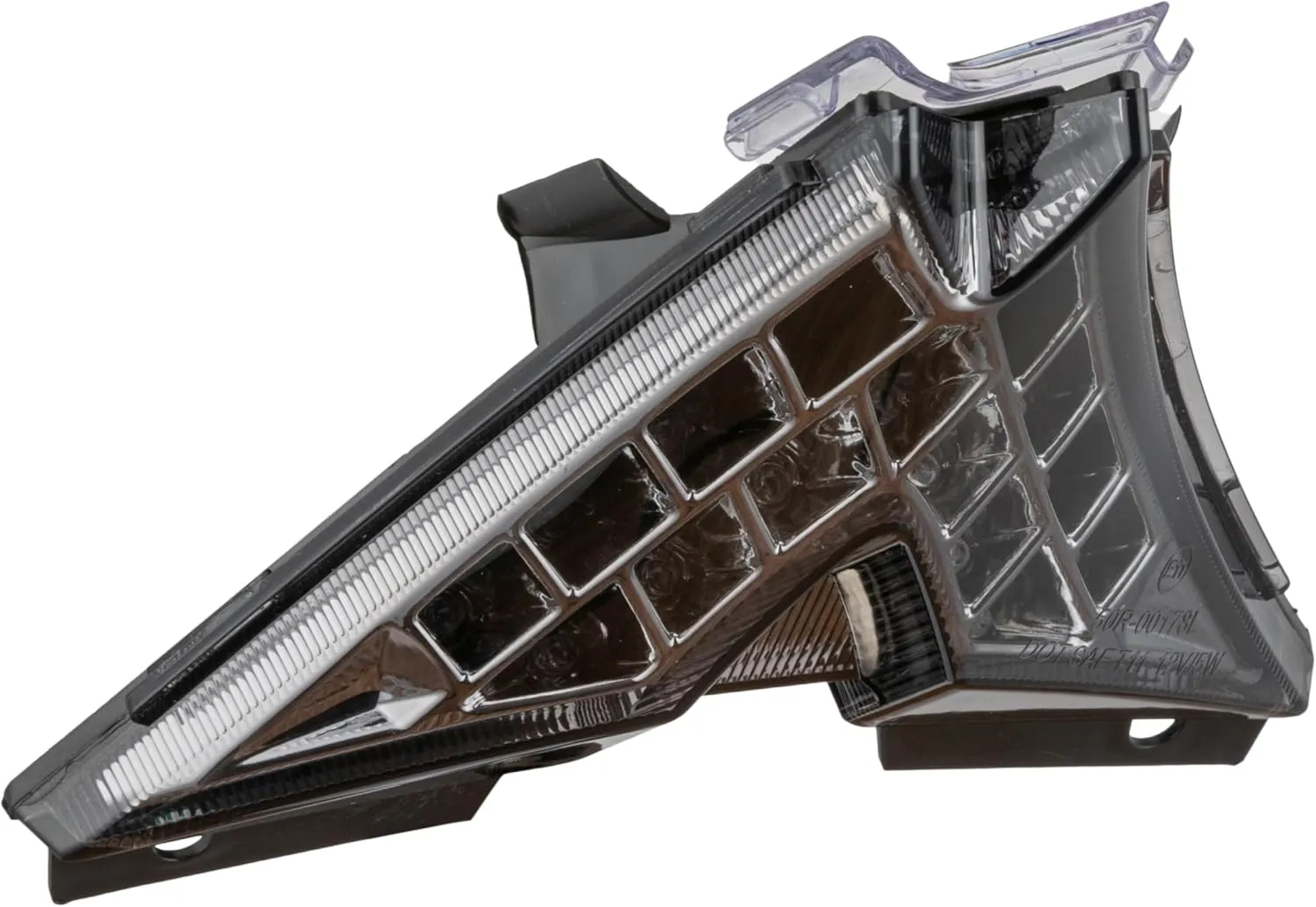

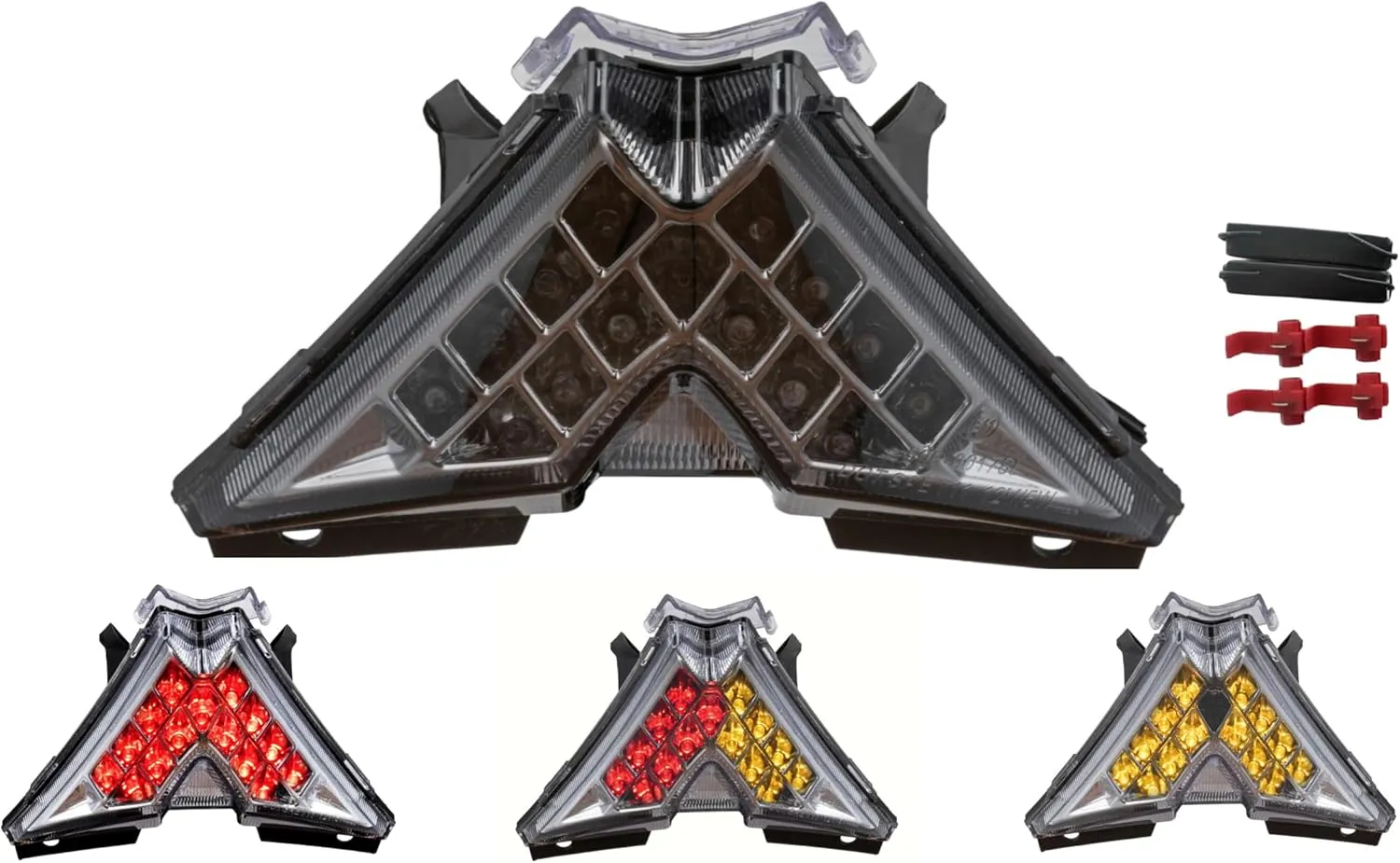

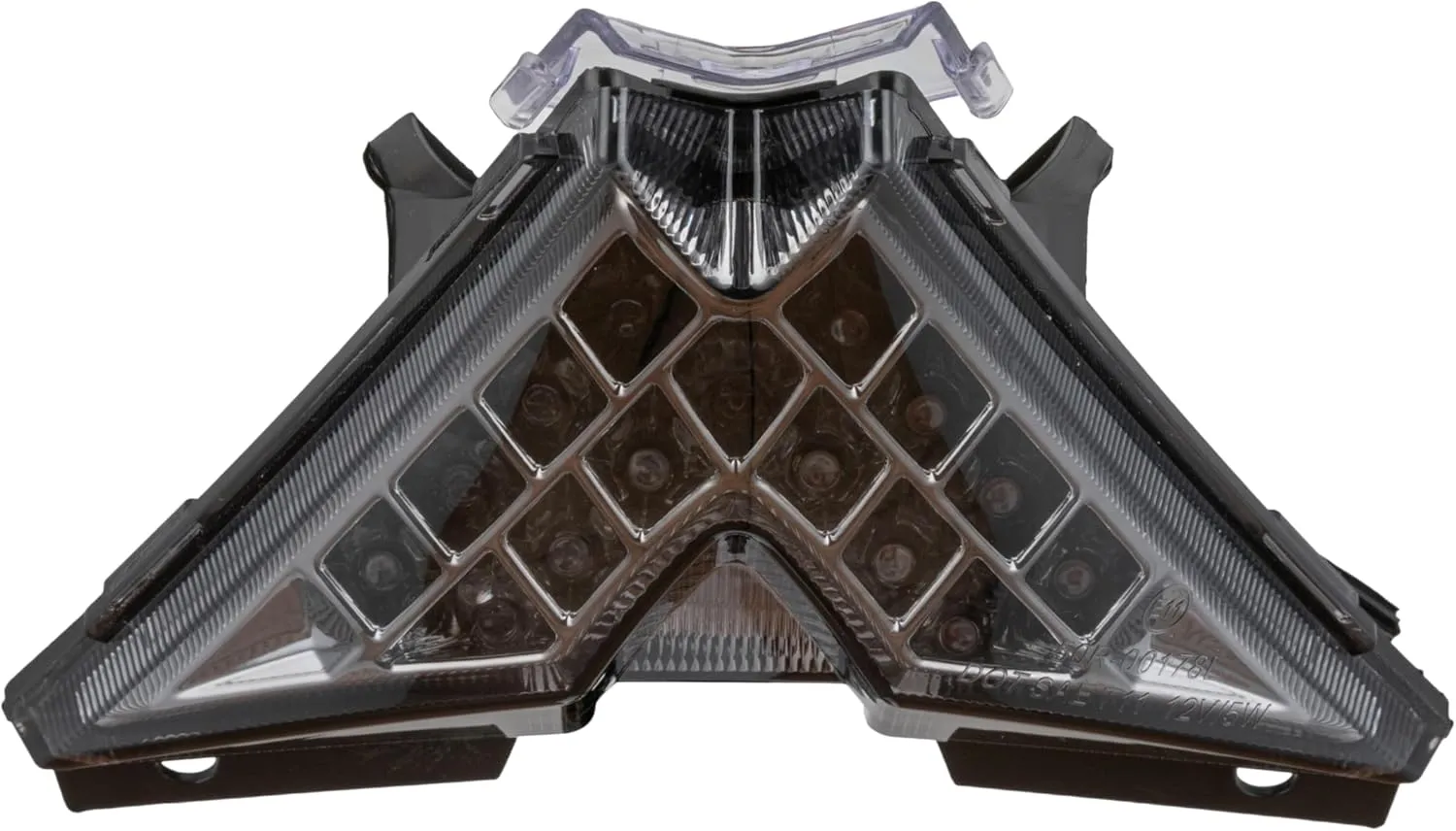

LED Rear Lamp Brake Tail Light Integrated Turn Signal
Fit For APRILIA
2012-2016 CAPONORD 1200 ;
2011-2023 RS4 125;
2011-2022 RS4 50 2T;
2009-2020 RSV 4 1000;
2019-2021 RSV4 1100 RACING FACTORY;
2011-2015 TUONO 1000 V4;
2015-2021 TUONO V4 1100;
2017-2022 TUONO 125;





We provide customized LED taillight Service.

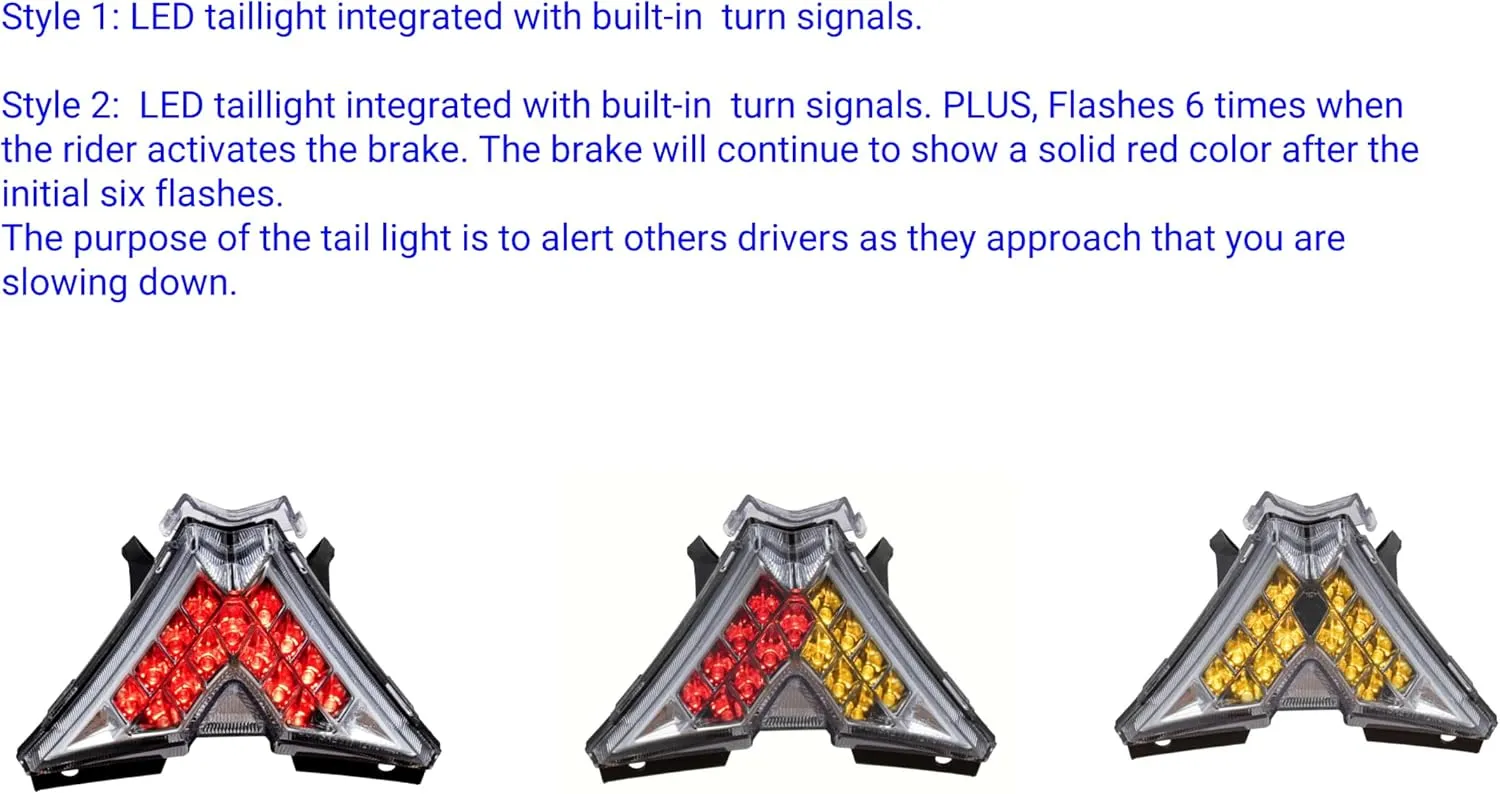

Style 1: LED taillight integrated with turn signals.

Style 2: Updated Flashing of style 1. LED taillight integrated with turn signals. Plus， Flashes 6 times when the rider activates the brake. The brake will continue to show a solid red color after the initial six flashes. The purpose of the tail light is to alert others drivers as they approach that you are slowing down.



.


Running light / position light : red color
Stop light / brake light : red color more powerful when you are braking
Integrated turn signals indicators : amber color on each half of the taillight (wires are independent)
To slow down the blinking rate use provided resistors if necessary:

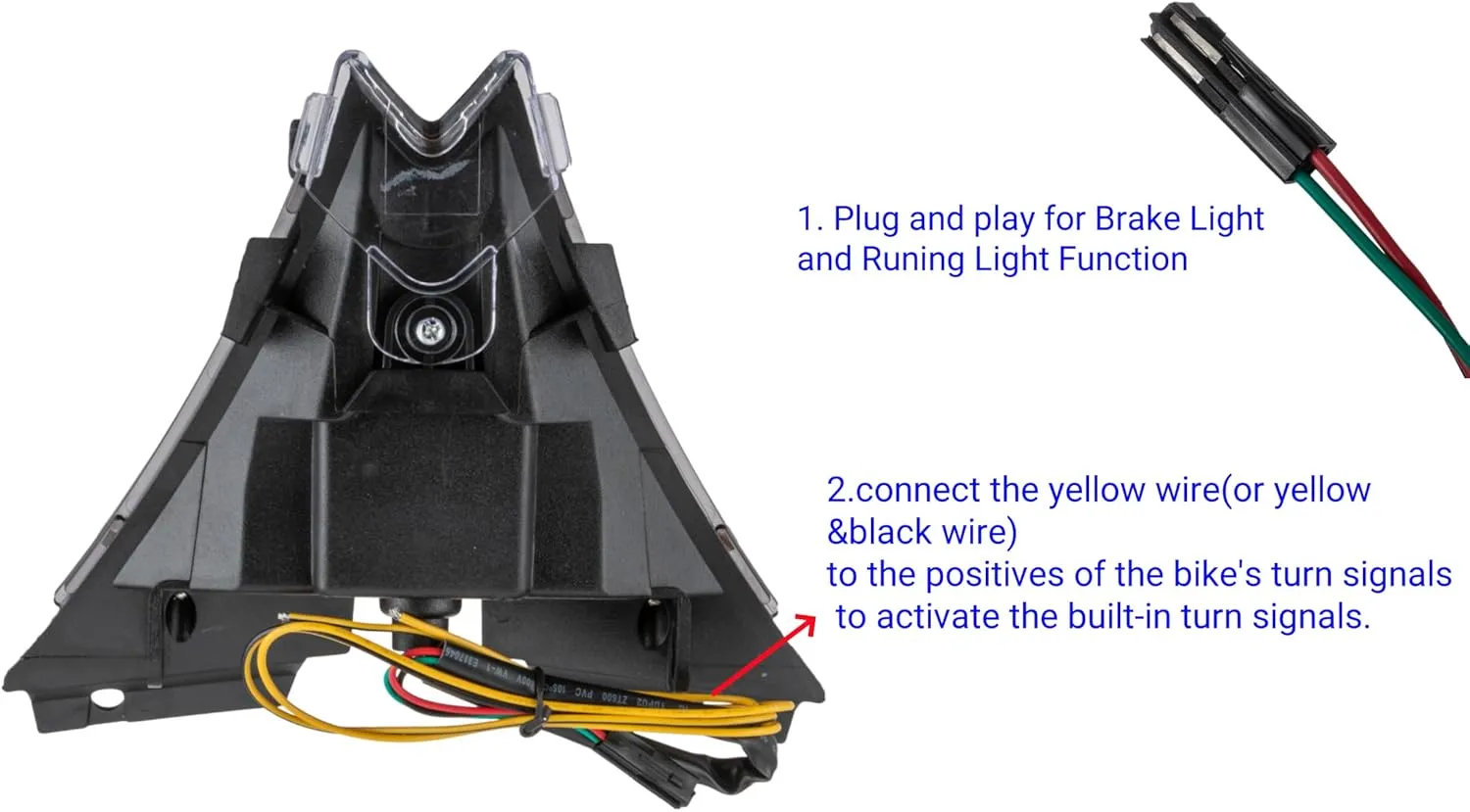

Wiring Diagram applicable to most bikes:
Black Wire(Negative),
Green Wire(Brake)
Red Wire(Running Light)
1. Connect one end of the resistor to the ground wire on your turn signal harness from your bike.
2. Connect the other end of the resistor to both the YELLOW wire from our taillight and the positive turn signal wire from your turn signal harness from your bike.
3. Repeat the same process for the other side. To use the red connectors, place one wire inside along one channel, place another wire inside along the other channel. Push down the metal pin as it will make a small cut on each wire bridging the connectors.
if you are using the resistors, place one end of the resistor in the middle of either channel along with the one wire.
